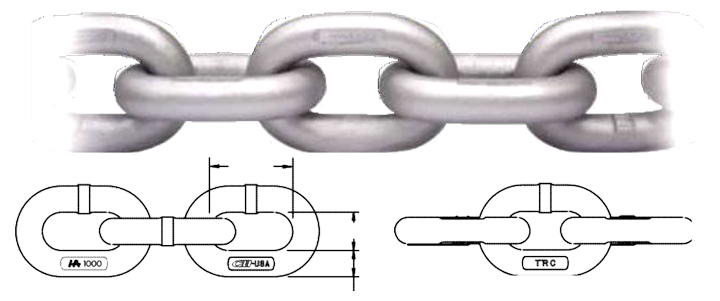

ALLOY CHAIN - GRADE 100
DESCRIPTION
Meets or exceeds many national and International standards
25% higher working load limit when compared to Grade80
100% Proof Tested
Suitable for over head lifting
SPECIFICATION
| Chain Size. | Working Load Limit (lb) | Nominal Chain Dimensions | Chain Weight (lb/ft) | Approx. No. of Links (per fit) | Standard Drum (ft) | Drum Weight (lb) | ||
|---|---|---|---|---|---|---|---|---|
| Material Dia. A | Material Dia. B | Material Dia. C | ||||||
| 7/32 | 2,700 | 0.218 | 0.676 | 0.312 | 0.44 | 17.8 | 800 | 354 |
| 9/32 | 4,300 | 0.281 | 0.883 | 0.395 | 0.73 | 13.6 | 500 | 365 |
| 3/8 | 8,800 | 0.394 | 1.247 | 0.574 | 1.44 | 9.6 | 500 | 720 |
| 1/2 | 15,000 | 0.512 | 1.559 | 0.734 | 2.46 | 7.7 | 300 | 738 |
| 5/8 | 22,600 | 0.630 | 1.916 | 0.855 | 3.70 | 6.3 | 200 | 740 |
| 3/4 | 35,300 | 0.787 | 2.397 | 1.070 | 5.80 | 5.0 | 100 | 577 |
