ALLOY CHAIN - GRADE 80
DESCRIPTION
Meets or Exceeds many National and International Standards
Certification Included in every Drum
100% Proof Tested
Suitable for overhead lifting
SPECIFICATION

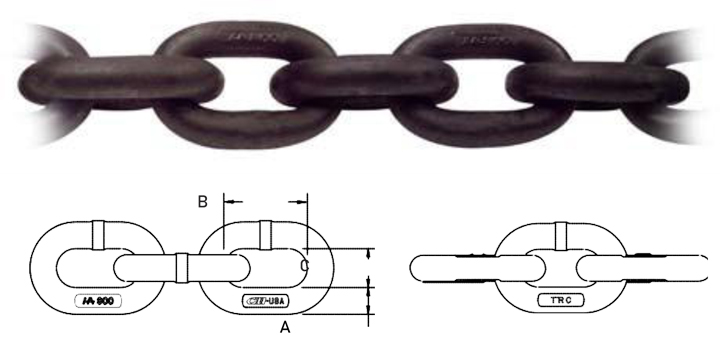

| Chain Size. | Working Load Limit (lb) | Nominal Chain Dimensions | Chain Weight (lb/ft) | Approx. No. of Links (per fit) | Standard Drum (ft) | Drum Weight (lb) | ||
|---|---|---|---|---|---|---|---|---|
| Material Dia. A | Material Dia. B | Material Dia. C | ||||||
| 7/32 | 2,100 | 0.218 | 0.676 | 0.312 | 0.44 | 17.8 | 800 | 354 |
| 9/32 | 3,500 | 0.281 | 0.883 | 0.395 | 0.73 | 13.6 | 500 | 365 |
| 5/16 | 4,500 | 0.315 | 1.019 | 0.455 | 0.91 | 11.8 | n/a | n/a |
| 3/8 | 7,100 | 0.394 | 1.247 | 0.574 | 1.44 | 9.6 | 500 | 719 |
| 1/2 | 12,000 | 0.512 | 1.440 | 0.734 | 2.55 | 8.3 | 300 | 765 |
| 5/8 | 18,100 | 0.630 | 1.777 | 0.855 | 3.82 | 6.8 | 200 | 765 |
| 3/4 | 28,300 | 0.787 | 2.234 | 1.070 | 5.95 | 5.4 | 100 | 596 |
| 7/8 | 34,200 | 0.875 | 2.250 | 1.137 | 7.76 | 5.3 | 100 | 776 |
| 1 | 47,700 | 1.000 | 3.070 | 1.490 | 9.39 | 3.9 | 100 | 939 |
