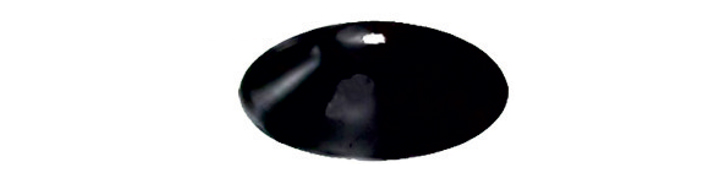

CONICAL DISC
SPECIFICATION
We manufacture conical disc blades which mix well with the upper and inner layers of soil and take out the deep buried nutrients at the surface. To meet different demands, we offer these Conical Disc Blades in varied dimensions like accurate dimension, Resistance to corrosion, Optimum functioning and long lasting performance.
| Agriparts Part No. | Type | A (MM) | Thickness (MM) | Concavity (MM) | C (MM) | No. of Notches & Size |
|---|---|---|---|---|---|---|
| PA-CD-001 | Conical | 508 | 5 to 8 | 80 | 180 | As per Client Requirement |
| PA-CD-002 | Conical | 560 | 5 to 8 | 92 | 180 | As per Client Requirement |
| PA-CD-003 | Conical | 660 | 5 to 8 | 98 | 210 | As per Client Requirement |
| PA-CD-004 | Conical | 660 | 6 to 8 | 110 | 210 | As per Client Requirement |
| PA-CD-005 | Conical | 610 | 6 to 8 | 110 | 265 | As per Client Requirement |
