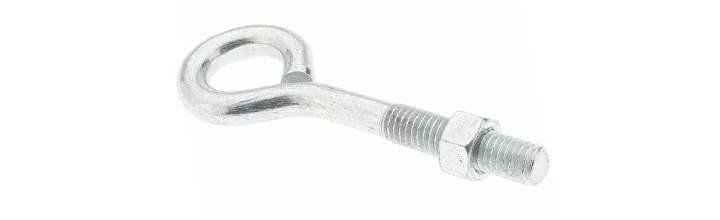

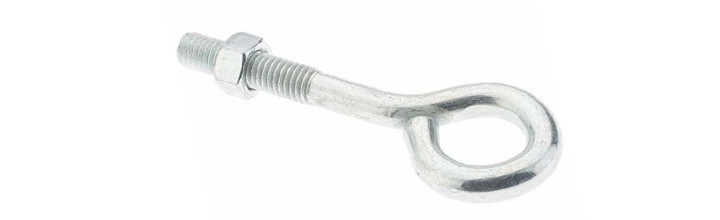

EYE BOLTS
SPECIFICATION
| Agriparts Part No. | A | B | C | D | E |
|---|---|---|---|---|---|
| PA-EB-102 | 3/16” | 1” | 1-3/8” | 2” | 3/8” |
| PA-EB-104 | 3/16” | 1-5/8” | 1-3/4” | 2-1/2” | 3/8” |
| PA-EB-106 | 1/4" | 1” | 1” | 2” | 9/16” |
| PA-EB-107 | 1/4" | 1-3/8” | 1-1/2” | 2-1/2” | 9/16” |
| PA-EB-108 | 1/4" | 1-3/4” | 2” | 3” | 9/16” |
| PA-EB-109 | 1/4" | 2-3/4” | 3” | 4” | 9/16” |
| PA-EB-110 | 1/4" | 3” | 4” | 5” | 9/16” |
| PA-EB-111 | 1/4" | 3” | 5” | 6” | 9/16” |
| PA-EB-112 | 5/16” | 1-3/4” | 2” | 3-1/4” | 3/4" |
| PA-EB-113 | 5/16” | 2-3/16” | 2-1/2” | 4” | 3/4" |
| PA-EB-114 | 5/16” | 3” | 3-1/2” | 5” | 3/4" |
| PA-EB-115 | 5/16” | 3” | 4-1/2” | 6” | 3/4" |
| PA-EB-117 | 3/8” | 3” | 2-1/4” | 4” | 1” |
| PA-EB-118 | 3/8” | 3” | 3-1/4” | 5” | 1” |
| PA-EB-119 | 3/8” | 3” | 4-1/4” | 6” | 1” |
| PA-EB-120 | 3/8” | 3” | 6-1/4” | 8” | 1” |
| PA-EB-123 | 1/2" | 3” | 3-3/4” | 6” | 1-1/4” |
| PA-EB-124 | 1/2" | 3” | 5-3/4” | 8” | 1-1/4” |
