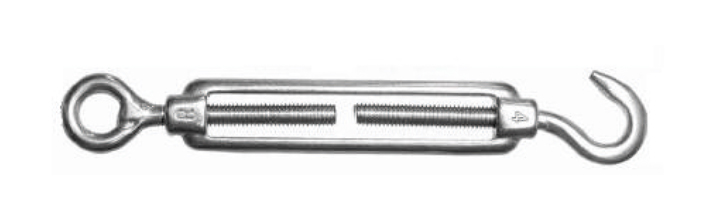

EYE + HOOK TURN BUCKLES
SPECIFICATION
| Agriparts Part No. | Thread Dia | Length(Min.-Max.) | Buckle Length (A) | Capacity |
|---|---|---|---|---|
| PATB-EH-006 | 6mm (1/4”) | 135 -180 | 103 | 70 |
| PATB-EH-008 | 8mm (5/16”) | 148-210 | 110 | 130 |
| PATB-EH-010 | 10mm (3/8”) | 175-265 | 130 | 200 |
| PATB-EH-012 | 12mm (1/2”) | 195-283 | 140 | 300 |
| PATB-EH-014 | 14mm (9/16”) | 225-340 | 170 | 430 |
| PATB-EH-016 | 16mm (5/8”) | 295-427 | 190 | 540 |
| PATB-EH-020 | 20mm (7/8”) | 315-451 | 220 | 1200 |
| PATB-EH-02 | 22mm (3/4”) | 466-644 | 240 | 1700 |
