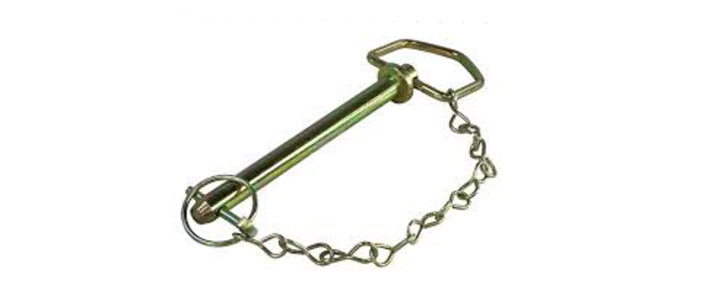

FOLDOVER HITCH PIN WITH LINCH PIN & CHAIN
DESCRIPTION
Forged head hitch pin with handle and zinc plated "R" clip pin. Yellow zinc dichromate plated. Also available in Round Shape and Square Shape Handle.
SPECIFICATION
| Agriparts Part No. | Reference No. | Pin Dia (A) | Usable Length (B) | Overall Length | Width (lbs) |
|---|---|---|---|---|---|
| PAHPCL001 | P71011CL | 1/2" | 4-1/4” | 5-3/4” | 0.5 |
| PAHPCL002 | P71012CL | 1/2" | 6-1/4” | 7-3/4” | 0.6 |
| PAHPCL003 | P71021CL | 5/8” | 4-1/4” | 5-3/4” | 0.7 |
| PAHPCL004 | P71022CL | 5/8” | 6-1/4” | 7-3/4” | 0.9 |
| PAHPCL005 | P71031CL | 3/4" | 4-1/4” | 5-3/4” | 1.0 |
| PAHPCL006 | P71032CL | 3/4” | 6-1/4” | 7-3/4” | 1.2 |
| PAHPCL007 | P71042CL | 7/8” | 6-1/4” | 7-3/4” | 1.6 |
| PAHPCL008 | P71052CL | 1” | 6-1/4” | 7-3/4” | 2.0 |
| PAHPCL009 | P71062CL | 1-1/8” | 6-1/4” | 7-3/4” | 2.5 |
| PAHPCL010 | P71072CL | 1-1/4” | 6-1/4” | 7-3/4” | 3.0 |
