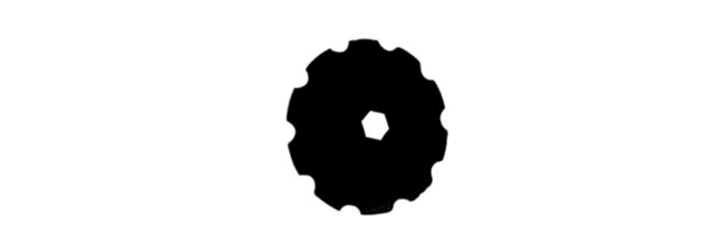

NOTCHED DISC
SPECIFICATION
Notched blades are highly efficient because of their greater dynamics, hence are able to penetrate the layers of soil. They have a greater weight per inch of circumference between different blade notches. They help to perform more wok in less time and suited for residue management.
We offer a full line of Plain blades in grades of Boron steel sizes and concavities as per your tillage requirement.
| Agriparts Part No. | Dia (INCH) | Dia (MM) | Thickness (MM) | Concavity (MM) | No. of Notches | Shaving | Notches Size (MM) |
|---|---|---|---|---|---|---|---|
| PA-ND-001 | 12 | 330.2 | 3.0 | 25 | 7 | Yes | 73x33 |
| PA-ND-002 | 13 | 304.8 | 3.0 | 25 | 7 | Yes | 73x33 |
| PA-ND-003 | 14 | 355.6 | 3.0 to 5.0 | 31, 38 | 9 | Yes | 73x33 |
| PA-ND-004 | 16 | 406.4 | 3.0 to 5.0 | 28, 35, 38, 54 | 9 | Yes | 76x40 |
| PA-ND-005 | 18 | 457.2 | 3.0 t0 6.35 | 44, 56, 67 | 9 | Yes | 80x40 |
| PA-ND-006 | 20 | 508 | 3.0 to 6.35 | 57, 60, 69, 84 | 10 | Yes | 80x45 |
| PA-ND-007 | 22 | 558.8 | 4.0 to 6.35 | 63, 70, 74, 78, 86 | 10 | Yes | 80x40 |
| PA-ND-008 | 24 | 609.6 | 4.0 to 8.0 | 68, 76, 83, 88, 95 | 10 | Yes | 80x40 |
| PA-ND-009 | 26 | 660.4 | 5.0 to 10.0 | 57, 70, 77, 89, 98, 104, 109 | 10 | Yes | 90x50 |
| PA-ND-010 | 28 | 711.2 | 6.0 to 10.0 | 74, 95, 109 | 10 | Yes | 90x50 |
| PA-ND-011 | 30 | 762 | 6.0 to 8.0 | 86, 112 | 10 | Yes | 90x50 |
