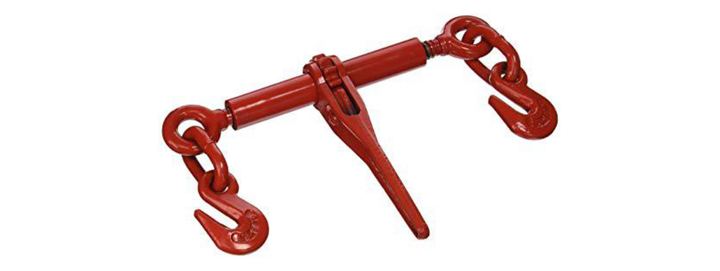

RATCHET LOADBINDER
SPECIFICATION
| Agriparts Part No. | Chain Size (In.) G70 | Chain Size (In.) G43 | Take Up (In.) | Handle Length (In.) | Lbs. | W.L.L. (Lbs.) | W.L.L. (Kgs.) |
|---|---|---|---|---|---|---|---|
| PARLB-001 | 1/4 | 5/16” | 5” | 6.75" | 4.5 | 3900 | 1769 |
| PARLB-002 | 5/16” | 3/8” | 6.50" | 13.92" | 11 | 5400 | 2449 |
| PARLB-003 | 3/8” | 1/2” | 6.50” | 13.92" | 13 | 9200 | 4173 |
| PARLB-004 | 1/2” | 5/8” | 6.50” | 13.92" | 16 | 13000 | 5897 |

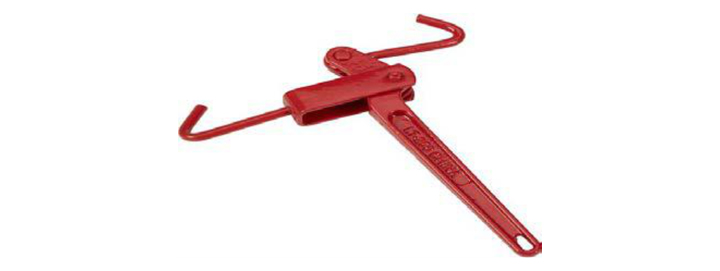

| Agriparts Part No. | Take Up (In.) | Handle Length (In.) | Handle Length (Lbs.) | W.L.L. (Lbs.) | W.L.L. (Kgs.) |
|---|---|---|---|---|---|
| PAMLB-001 | 1.85” | 9.05" | 1.66 | 250 | 113 |
