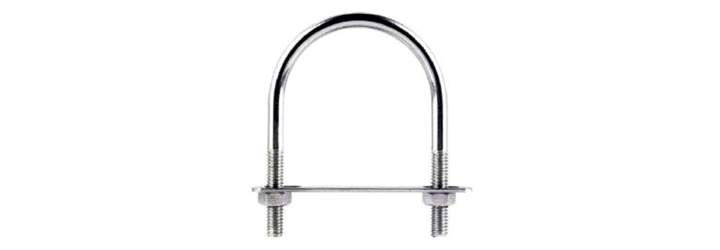

U-BOLTS (ROUND)
SUPPLIED WITH 3/32” MOUNTING PLATE AND NUTS.
SPECIFICATION
| Agriparts Part No. | Thread Dia | Center Distance | Height | Thread Length | Pipe Size |
|---|---|---|---|---|---|
| PA-UBR-140 | 1/4"-20 | 1-1/8” | 2” | 1” | 3/4” |
| PA-UBR-141 | 1/4"-20 | 1-3/8” | 2-3/4” | 1-1/4” | 1” |
| PA-UBR-142 | 1/4"-20 | 2” | 3-1/2” | 1-3/4” | 1-1/2” |
| PA-UBR-143 | 5/16”-18 | 1-3/8” | 2-1/2” | 1” | 1” |
| PA-UBR-144 | 5/16”-18 | 1-3/8” | 3-11/16” | 2-3/8” | 1” |
| PA-UBR-145 | 5/16”-18 | 1-3/4” | 3” | 1-1/2” | 1-1/4” |
| PA-UBR-146 | 5/16”-18 | 1-3/4” | 4-3/16” | 2-3/4” | 1-1/4” |
| PA-UBR-147 | 5/16”-18 | 2” | 3” | 1-1/2” | 1-1/2” |
| PA-UBR-148 | 5/16”-18 | 2” | 3-3/4” | 2-1/8” | 1-1/2” |
| PA-UBR-149 | 5/16”-18 | 2-1/2” | 3-1/2” | 1-1/2” | 2” |
| PA-UBR-150 | 5/16”-18 | 2-1/2” | 4-3/16” | 2-3/8” | 2” |
| PA-UBR-151 | 3/8”-16 | 2-1/2” | 3-5/8” | 1-3/4” | 2” |
| PA-UBR-152 | 3/8”-16 | 3” | 4-1/8” | 1-3/4” | 2-1/2” |
| PA-UBR-153 | 3/8”-16 | 3-1/2” | 4-5/8” | 2” | 3” |
