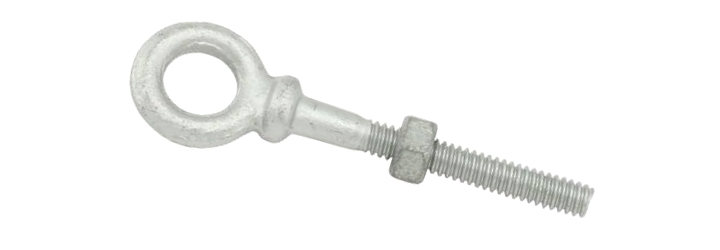

SHOULDER EYE BOLTS
(FORGED STEEL, GALVANIZED FINISH)
SPECIFICATION
| Agriparts Part | Thread Dia | Thread Length | Shank Length | Total Length | Eye Dia | W.L.L. |
|---|---|---|---|---|---|---|
| PA-SEB-100 | 1/4" | 1-1/2” | 2” | 3” | 1/2” | 500 lb. |
| PA-SEB-101 | 5/16” | 1-1/2” | 2-1/4” | 3-1/2” | 5/8” | 800 lb. |
| PA-SEB-102 | 3/8” | 1-1/2” | 2-1/2” | 4” | 3/4” | 1200 lb. |
| PA-SEB-103 | 1/2" | 1-1/2” | 3-1/4” | 5-1/4” | 1” | 2200 lb. |
| PA-SEB-104 | 5/8” | 1-3/4” | 4” | 6-1/2” | 1-1/4” | 3500 lb. |
| PA-SEB-105 | 1/4” | 2-1/2” | 4” | 5” | 1/2” | 500 lb. |
| PA-SEB-106 | 5/16” | 2-1/2” | 4-1/4” | 5-1/2” | 5/8” | 800 lb. |
| PA-SEB-107 | 3/8” | 2-1/2” | 6” | 7-1/2” | 3/4” | 1200 LB. |
| PA-SEB-108 | 1/2” | 3” | 6” | 7-3/4” | 1” | 2200 LB. |
